Meet Mr - and Mrs - Versatile. YZ-inspired handling and looks, and a clockwork reliable 223cc air-cooled, SOHC 4-stroke make the TT-R230 a great choice for beginner and intermediate riders.
A competition-style flat seat/tank junction makes for great rider mobility while the push button start is a no brainer. A low seat height on top of a long-travel suspension and generous ground clearance make this a serious trail bike that's accessible to wide range of riders.

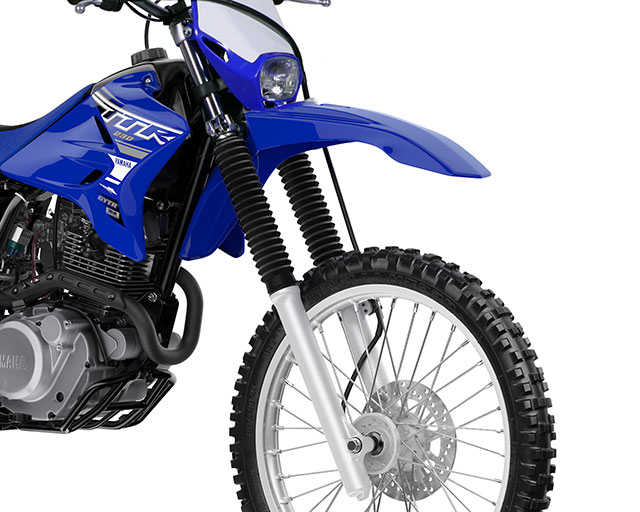

36mm front fork with 240mm of wheel travel provides plush, confidence inspiring control over rough terrain. 295mm of ground clearance should be enough to deal with almost any trail.
Smooth-shifting, six-speed transmission with heavy-duty clutch geared for maximum versatility and usable power delivery.
SUPERB STOPPING POWER
Front 220mm disc and 130mm rear drum brakes for powerful, confident stops. Full-size 21-inch front and 18-inch rear aluminium wheels keep unsprung weight down, while knobby tires provide motocross-spec grip.
AIR-COOLED 223CC FOUR-STROKE
Confidence-inspiring handling and a rugged 223cc air-cooled, SOHC four-stroke producing predictable, broadband power make the TT-R230 a great choice for beginner and intermediate riders.
LOW SEAT HEIGHT
A low seat height atop long-travel suspension and 295mm of ground clearance makes this a very capable trailbike suitable to a wide range of riders.
|Engine Type||Air-cooled, 4-stroke, SOHC, 2-valve, single cylinder|
|Bore x Stroke (mm)||70.0 x 58.0|
|Compression Ratio||9.5 : 1|
|Lubrication System||Wet sump|
|Fuel Management||Y26P x 1|
|Fuel Tank Capacity (L)||8.0|
|Transmission||Constant mesh 6-speed|
|Suspension Front||Telescopic forks, 240mm travel|
|Suspension Rear||Swingarm (link suspension), 220mm travel|
|Brakes Front||Hydraulic single disc, 220mm|
|Tyres Front||80/100-21 (51R) Tube type|
|Tyres Rear||100/100-18 (59R) Tube type|
|Seat Height (mm)||870|
|Ground Clearance (mm)||295|
|Wet Weight (kg)||114|
